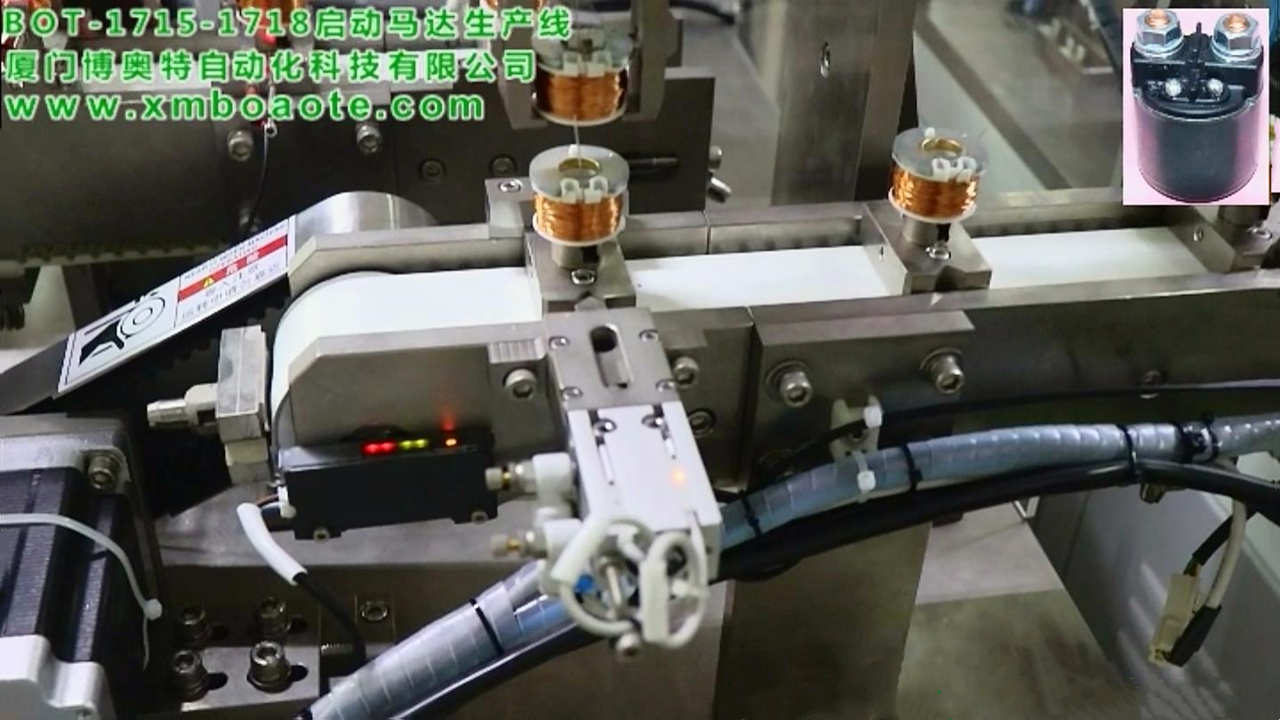

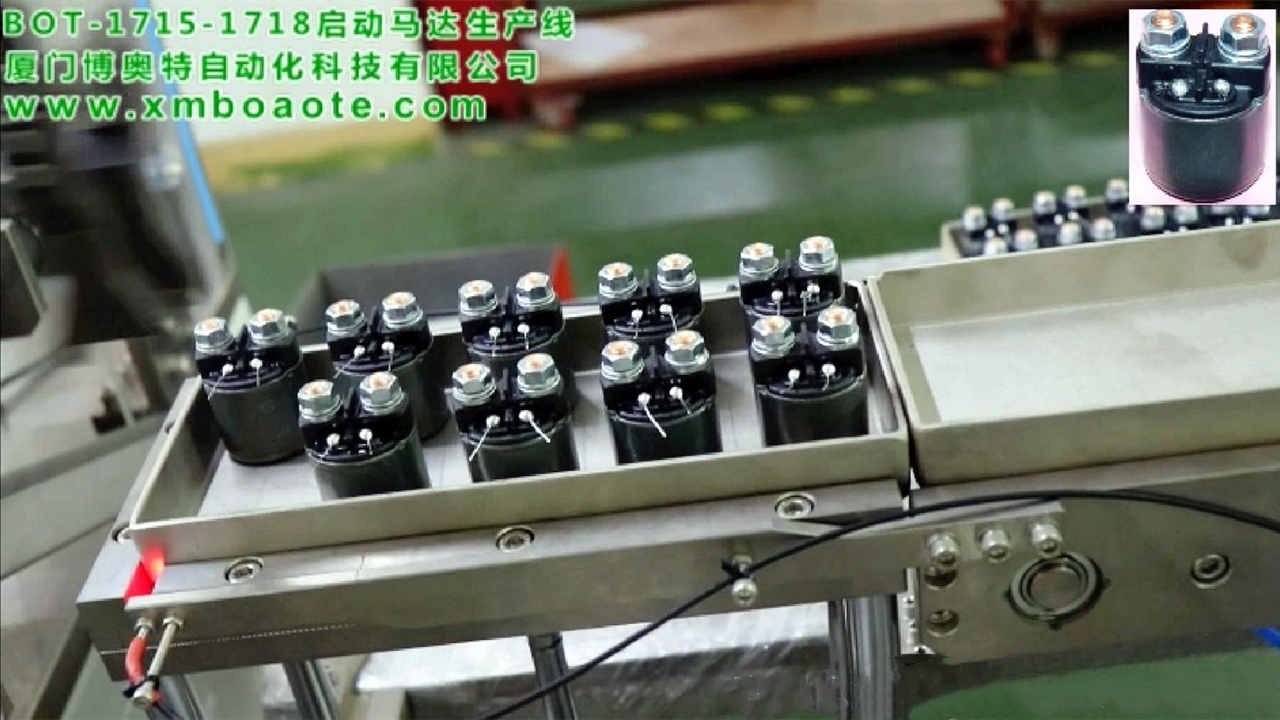

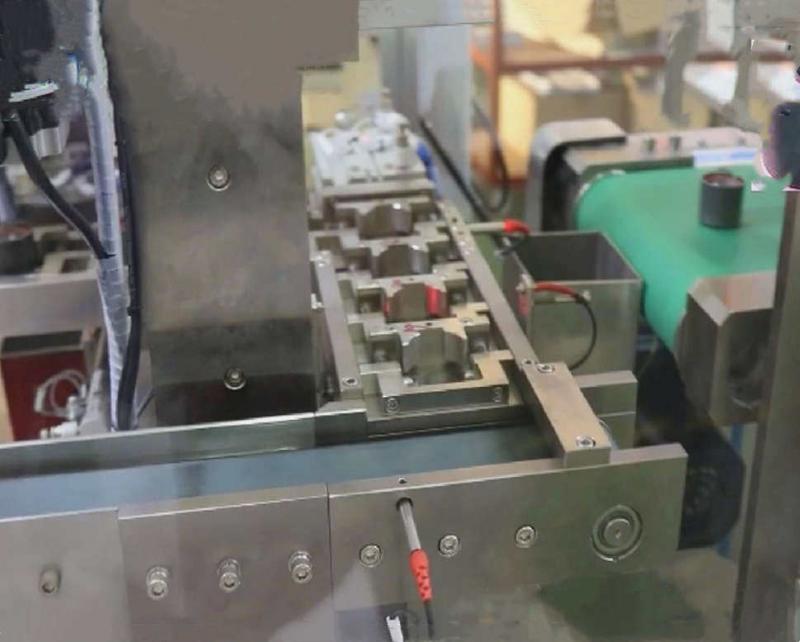

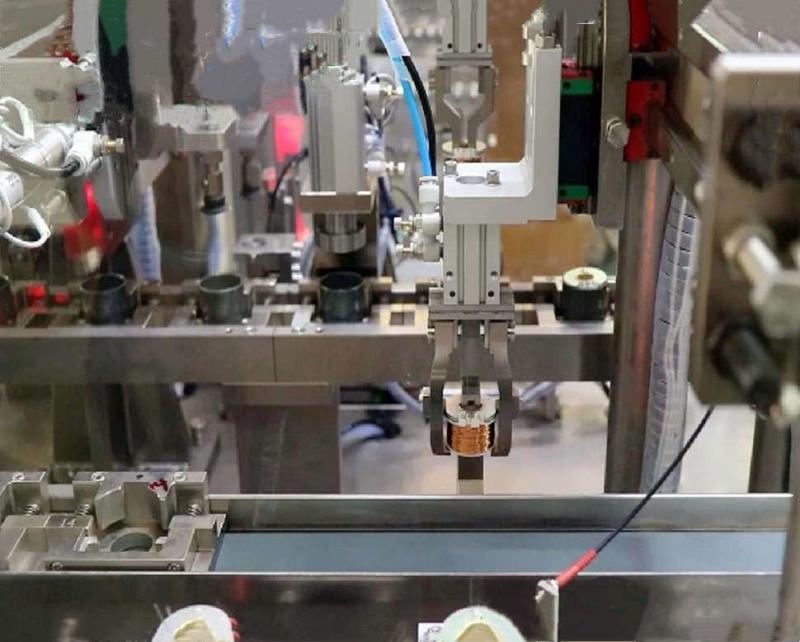

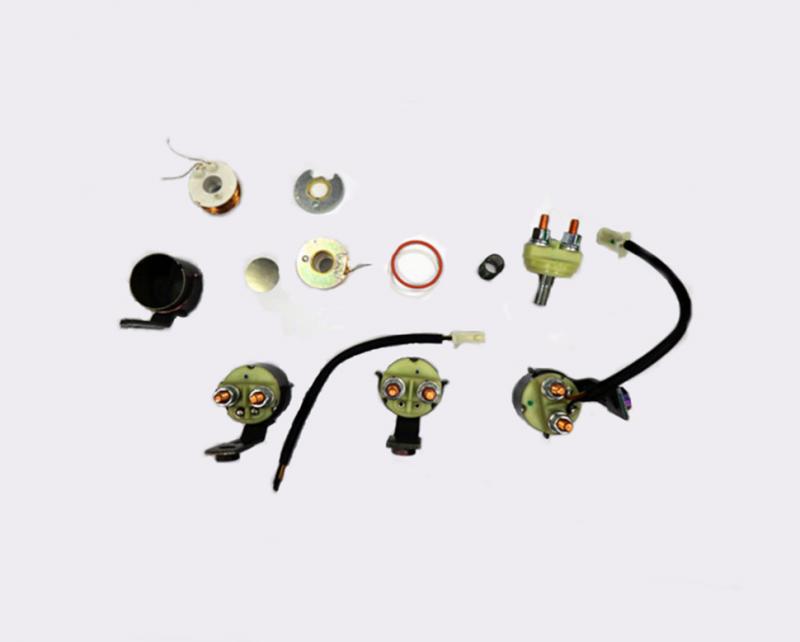

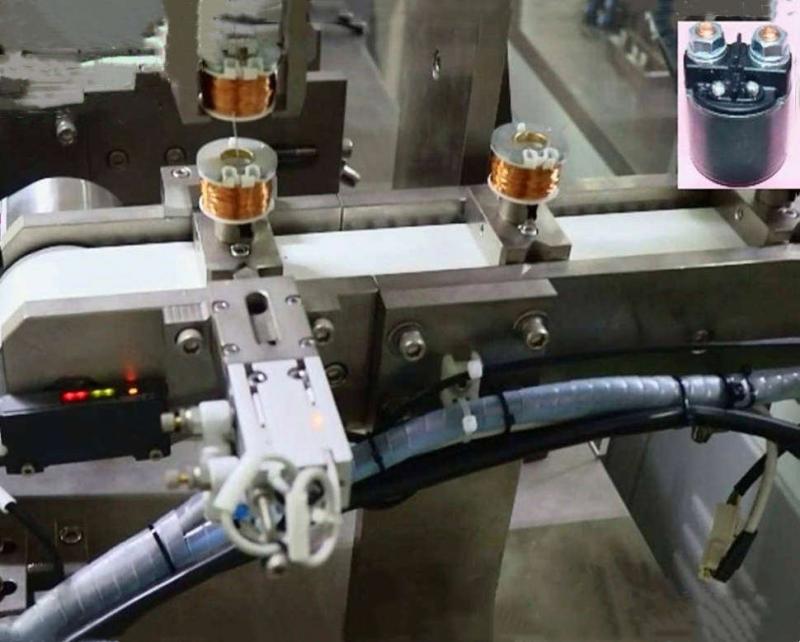

A starter motor relay production line, through the use of riveted core device, bottom plate coil assembly device, pressing spring armature riveting device, welding wire device, form the production line of starting motor relay, effectively improve the automation degree of starting motor relay production, improve the production efficiency, realize the rapid production of starting motor relay, and effectively reduce the human demand.
Item NO.:
BOT-R50Order(MOQ):
1Payment:
T / T, L / C, Online Transfer, WesternUnionProduct Origin:
Ｘiamen, ChinaShipping Port:
Xiamen Port, ChinaLead Time：
Est. Time (days): 90, or To be negotiate
A starter motor relay production line, through the use of riveted core device, bottom plate coil assembly device, pressing spring armature riveting device, welding wire device, form the production line of starting motor relay, effectively improve the automation degree of starting motor relay production, improve the production efficiency, realize the rapid production of starting motor relay, and effectively reduce the human demand.

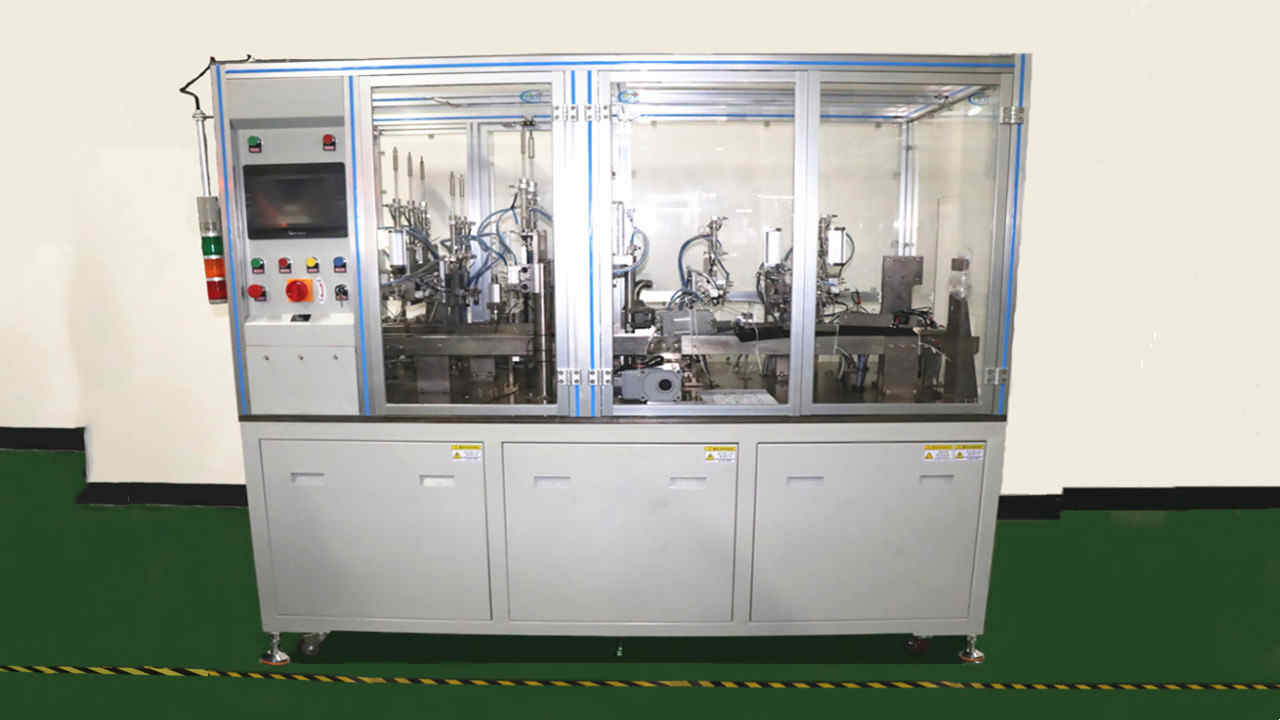

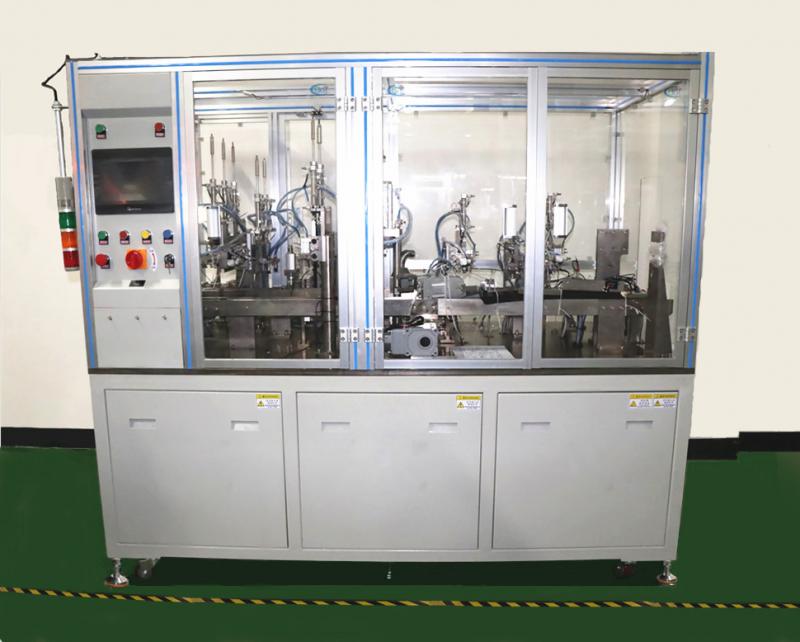

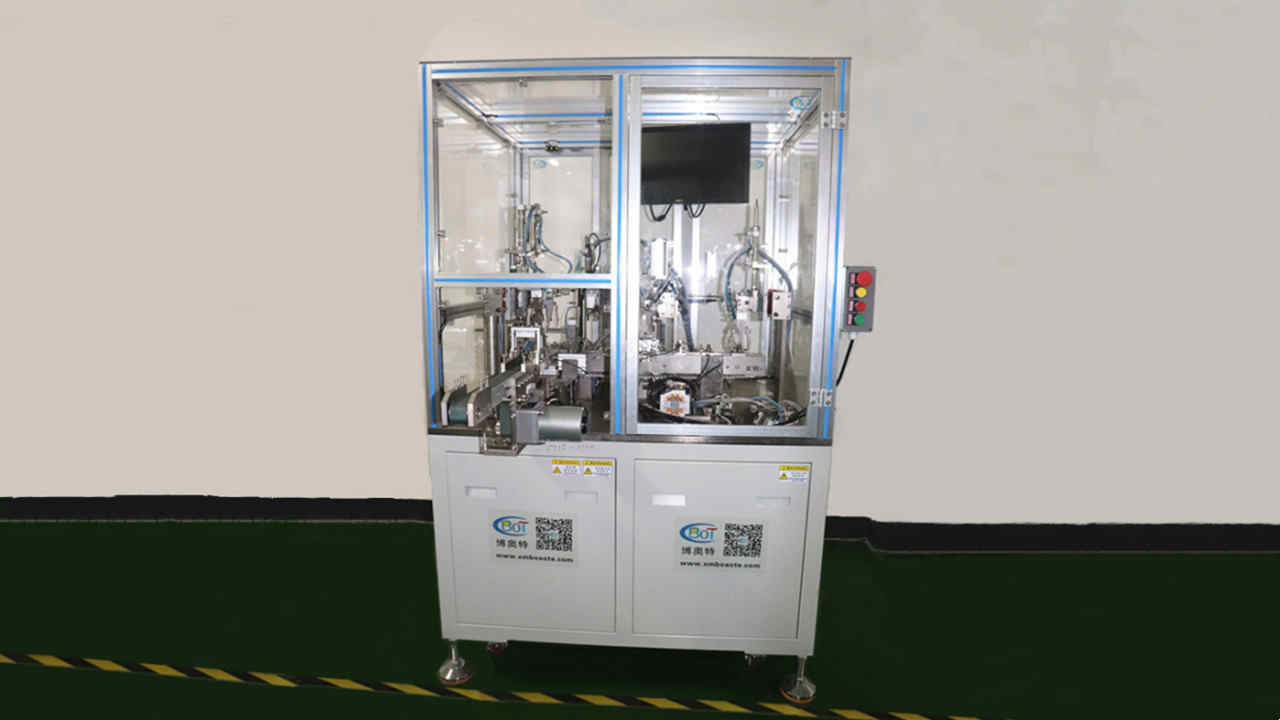

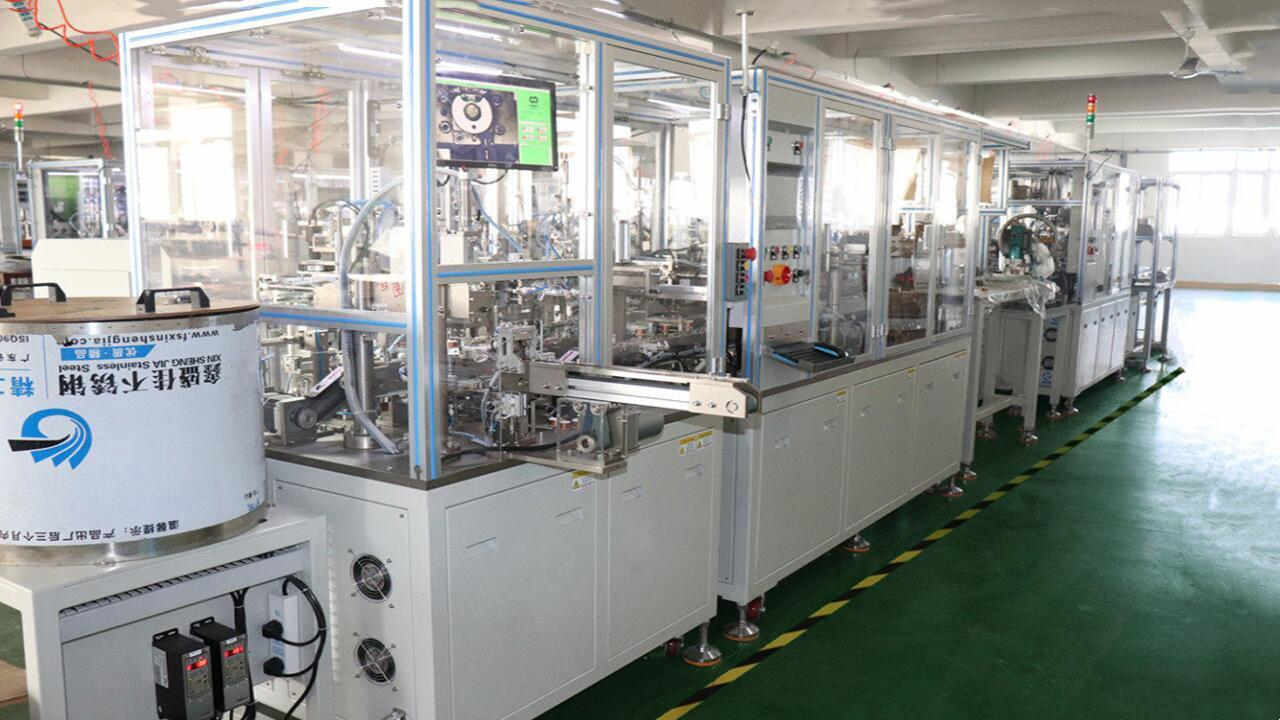

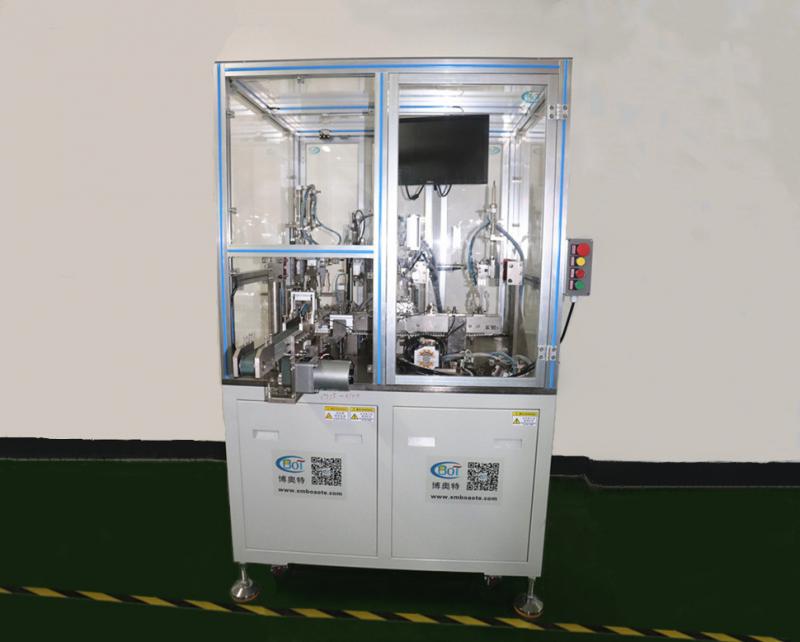

Relay automatic assembly line:
1. Operation interface intuitive, easy to use, easy to maintain.
2. Production counter statistics, production can be intuitive and controllable.
3. Fault alarm display error, easy to troubleshoot.
4. The equipment is assembled in the form of rotary disc intermittent assembly structure, automatic feeding assembly;
|
No. |
Product |
Brand |
|
1 |
Air Cylinder |
SMC |
|
2 |
PLC |
Mitsubishi, OMRON, Panasonic, etc |
|
3 |
Sensor |
OMRON, Siemens, etc |
|
4 |
HML |
Mitsubishi, Kunluntongtai, DLLJSJ, etc |
|
5 |
Robot |
Epson |
|
6 |
Standard Part |
Mitsubishi |
|
Equipment technical parameters |
||||
|
productiveness |
Power |
Capacity |
Compressed air |
Overall dimensions( L*W*H ) |
|
1000－1200 PCS / H |
200/380 VAZ / 50HZ |
17KW |
0.50～0.80Mpa (0.60Mpa Best) |
17880 X 4800 X 1800 (mm) |
Autingassembly was established in 2015. It's a development, design, manufacturing, sales, service, technical training and talent customization as one of the high-tech automation equipment professional manufacturers. Provide automatic assembly testing and packaging integration equipment for hardware products, DC contactors, relay products, new energy electronics, medical devices, auto parts, motors and other industries. Adhering to the concept of "quality for survival, integrity for development" and "leading technology to create first-class products ", the company provides high-quality automatic production equipment for continuous innovation and continuous improvement. Help customers improve production efficiency and reduce labor costs, cast first-class products, improve the comprehensive competitiveness of enterprises, and continue to focus on the electronics and electrical industry non-standard automation equipment and automation equipment R & D and manufacturing. Through 10 years of continuous development, the company's products stable and efficient application performance has been praised and trusted by many companies.
Hardware Lock; DC Contactor Products; Relay Products; Automotive New Energy and Motor Products; Bathroom and Hardware Products; Medical Equipment.
|
Packaging |
Wooden box, pallet, carton or as customer's request |
|
Carton size |
Usually it is customized. |
|
MOQ |
sample order is available. |
Q1: Are you a trading company or a manufacturer?
A: We are a high-tech manufacturer devoted ourselves to automation industry for 12+ years
Q2: Do you have an E-catalogue?
A: Yes. You can scan the QR code on the homepage of our official website and download the E-catalogue . Or leave your email. We will send it to you by email.
Q3: Do you have any successful customer example?
A: Sure. Firstly, we need to get your product samples and product drawings. After analyzing the products, we will give a quotation.
Q4: Could you please give me a quotation?
A: Sure. Firstly, we need to get your product samples and product drawings. After analyzing the products, we will give a quotation.
Q5: How long is your delivery time?
A: Normally in 65 days.
1、Warranty: 1 year from date of shipment. If any damage during the period caused by the seller, the seller shall then offer free maintenance on site and free component replacement (Exclusive of quick-wear parts).
2、The Seller offer life-long maintenance service, only labor cost will be needed if beyond the warranty period. If any damage parts needed component replacement and the Seller is not to blame, the Seller has the right to ask for material cost for replacement component.
3、The Seller will respond to any defects claims within 4 hours by telephone, email, and fax. For maintenance service in Fujian province within 36 hours, outside of Fujian province within 72 hours. For components replacement, the actual time can be negotiated additionally.
4、The Seller provide free training of operating personnel.
5、The Seller will also provide relevant technical information, including operating instructions & quick wear parts drawings.
6、The following situations are not included within the warranty period:
a. Quick wear parts confirmed by both sides;
b. Machine damage caused by natural disasters for example earthquake, fire, thunderstroke, and improper operation.
Can be designed and customized for customers, to a greater extent to meet the technical needs of different products.
Our company has obtained many patents and inventions.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories

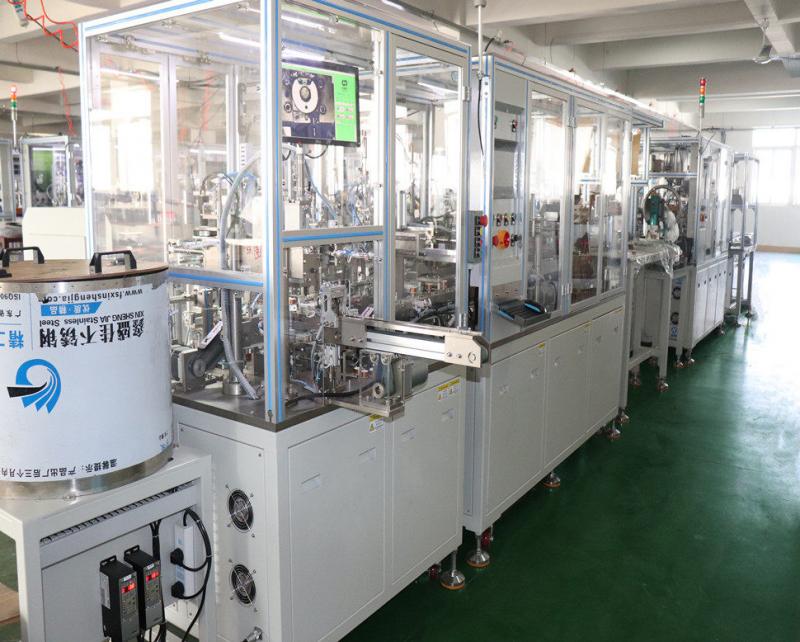

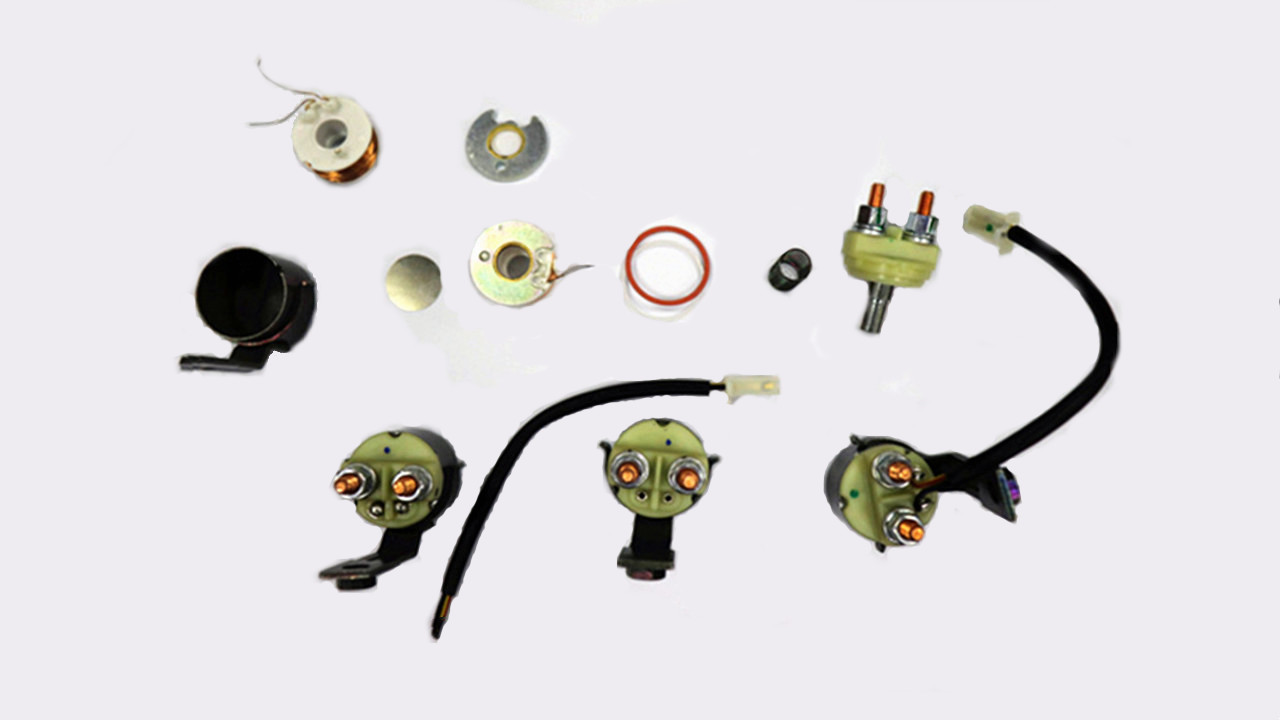

This production line successively completes the assembly of all parts of relay (including coil, iron core, yoke, moving spring, base plate, resistance, terminal A, terminal B, terminal C, terminal D, stop piece, shell and other parts), and carries out the inspection of all electrical parameters of the assembled products, selects the defective products found in the assembly and inspection process, and finally outputs the qualified finished products. This production line realizes the full automatic production of relay, reduces the labor cost and improves the production efficiency.
This production line successively completes the assembly of all parts of BGR249 relay including coil, iron core, yoke, moving spring, base plate, resistance, terminal A, terminal B, terminal C, terminal D, stop piece, shell and other parts, and carries out the inspection of all electrical parameters of the assembled products, selects the defective products found in the assembly and inspection process, and finally outputs the qualified finished products. This production line realizes the full automatic production of BGR249 relay, reduces the labor cost and improves the production efficiency.
This production line assembles the relay parts, and carries on the inspection to the assembled product all electrical parameters, carries on the screening to the assembly and the inspection process discovers the bad product, the final end outputs the qualified finished product. Fully automated production BGR249 relay is realized in this production line, which reduces labor cost and improves production efficiency.
This production line assembles the relay parts, and carries on the inspection to the assembled product all electrical parameters, carries on the screening to the assembly and the inspection process discovers the bad product, the final end outputs the qualified finished product. Fully automated production BGR249 relay is realized in this production line, which reduces labor cost and improves production efficiency.
This production line successively completes the assembly of all parts of BGR249 relay including coil, iron core, yoke, moving spring, base plate, resistance, terminal A, terminal B, terminal C, terminal D, stop piece, shell and other parts, and carries out the inspection of all electrical parameters of the assembled products, selects the defective products found in the assembly and inspection process, and finally outputs the qualified finished products. This production line realizes the full automatic production of BGR249 relay, reduces the labor cost and improves the production efficiency.
Relay production line full automatic assembly machine from Autingassembly It has more than 10 years of experience in automatic assembly production. Automatic assembly relay machines and production line improve quality, lower labor cost, speed up efficiency. General power relays manufactures can back all cost of machines easily within one and a half years.
This production line assembles the relay parts, and carries on the inspection to the assembled product all electrical parameters, carries on the screening to the assembly and the inspection process discovers the bad product, the final end outputs the qualified finished product. Fully automated production BGR249 relay is realized in this production line, which reduces labor cost and improves production efficiency.
This equipment includes workbench box door, support frame, door plate, rivet feeder and riveting ring feeder; workpiece feeder presses the rivets and riveting ring to the workpiece, transfer the workpiece to the conveyor belt with rotating cylinder, and complete the assembly and riveting process. The automatic riveting assembly replaces the manual operation with high working efficiency and automation.
