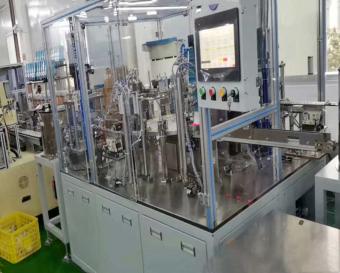

This machine is high-power contactor assembly and test production line. The parts used in the equipment, except coil assembly / static contact, shell / outer core, and moving contact assembly used in are sent to the equipment by stacking type automatic feeding mechanism. It mainly adopts synchronous transmission line, rotary tooling, visual inspection, manipulator cutting mechanism and so on. The materials include body, air core, rubber pad, all of which are automatically loaded, assembled, tested and unloaded to the swinging plate. The utility model has the advantages of cost saving, simple operation and high working efficiency.

This production line assembles the relay parts, and carries on the inspection to the assembled product all electrical parameters, carries on the screening to the assembly and the inspection process discovers the bad product, the final end outputs the qualified finished product. Fully automated production BGR249 relay is realized in this production line, which reduces labor cost and improves production efficiency.

This production line assembles the relay parts, and carries on the inspection to the assembled product all electrical parameters, carries on the screening to the assembly and the inspection process discovers the bad product, the final end outputs the qualified finished product. Fully automated production BGR249 relay is realized in this production line, which reduces labor cost and improves production efficiency.

A starter motor relay production line, through the use of riveted core device, bottom plate coil assembly device, pressing spring armature riveting device, welding wire device, form the production line of starting motor relay, effectively improve the automation degree of starting motor relay production, improve the production efficiency, realize the rapid production of starting motor relay, and effectively reduce the human demand.

Magnetic steel automatic assembly device, including the frame and set on the rack workbench, equipped with conveying mounting parts conveying mechanism, also equipped with automatic conveying of magnetic steel and magnetic steel assembly mechanism for assembling magnetic steel into the installation parts. The structure design is reasonable, through the setting of the installation parts conveying mechanism, magnetic steel conveying mechanism and magnetic steel assembly mechanism, to achieve the installation parts and magnetic steel automatic feeding, assembly, high degree of automation, reduce labor, reduce production costs, improve product quality.

This equipment includes workbench box door, support frame, door plate, rivet feeder and riveting ring feeder; workpiece feeder presses the rivets and riveting ring to the workpiece, transfer the workpiece to the conveyor belt with rotating cylinder, and complete the assembly and riveting process. The automatic riveting assembly replaces the manual operation with high working efficiency and automation.
